🎛️ 8051 Assembly Language Projects & Simulator Repository

8051 ALP Projects

A curated collection of pure 8051 assembly language programs, simulations, and system-level microcontroller implementations.
This repository treats the 8051 not as a legacy MCU, but as a transparent machine for mastering low-level computation.

8051 Simulator — Core of This Repository

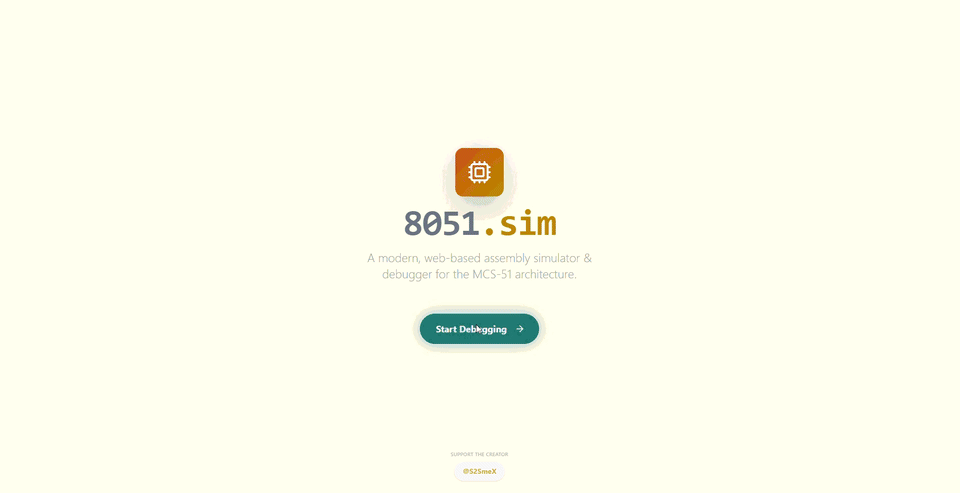

This repository is tightly integrated with a web-based 8051 Assembly Language Simulator, built to execute, debug, and analyze programs written for the Intel 8051 architecture.

🔗 Live Simulator
https://8051sim.vercel.app

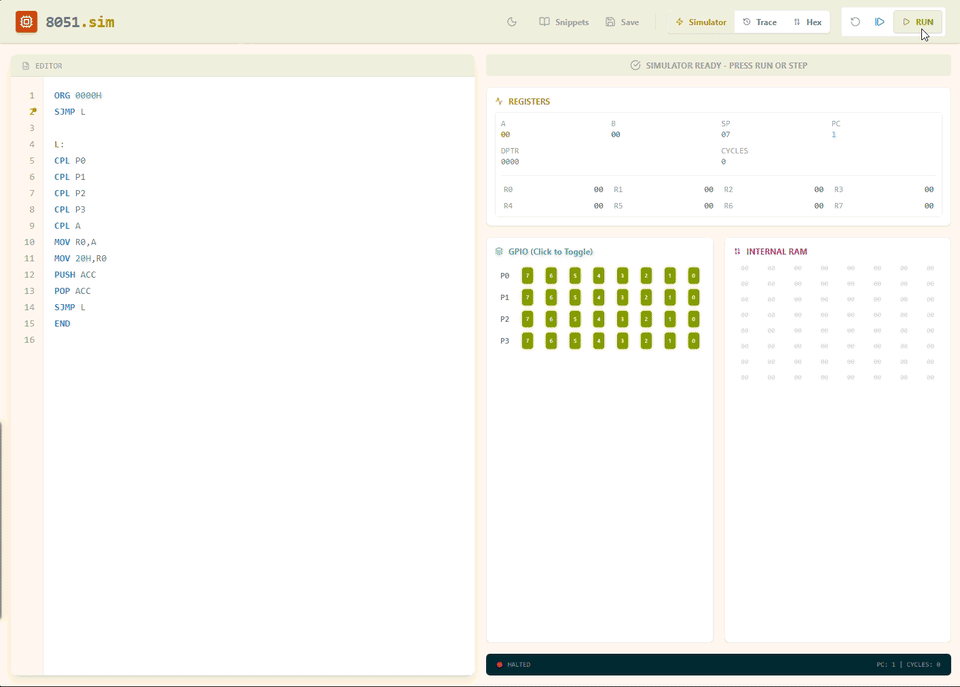

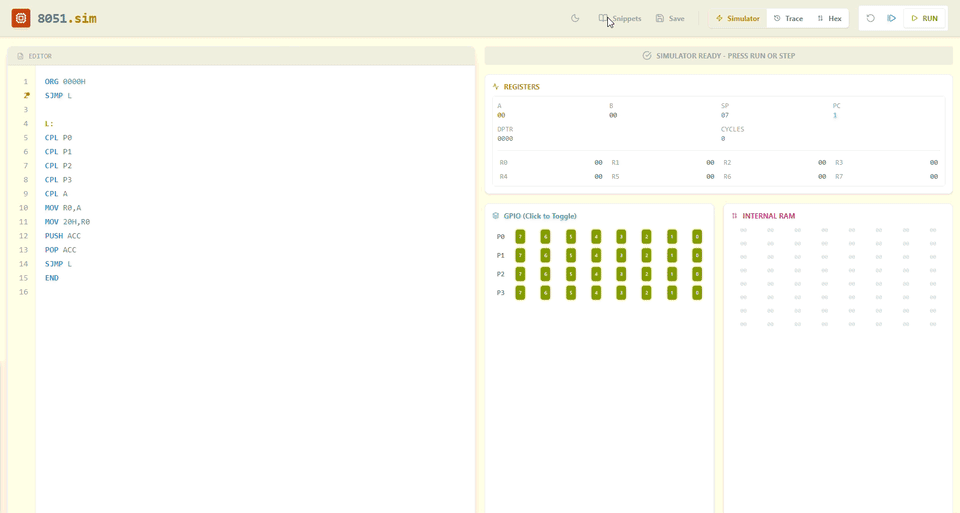

What the Simulator Enables

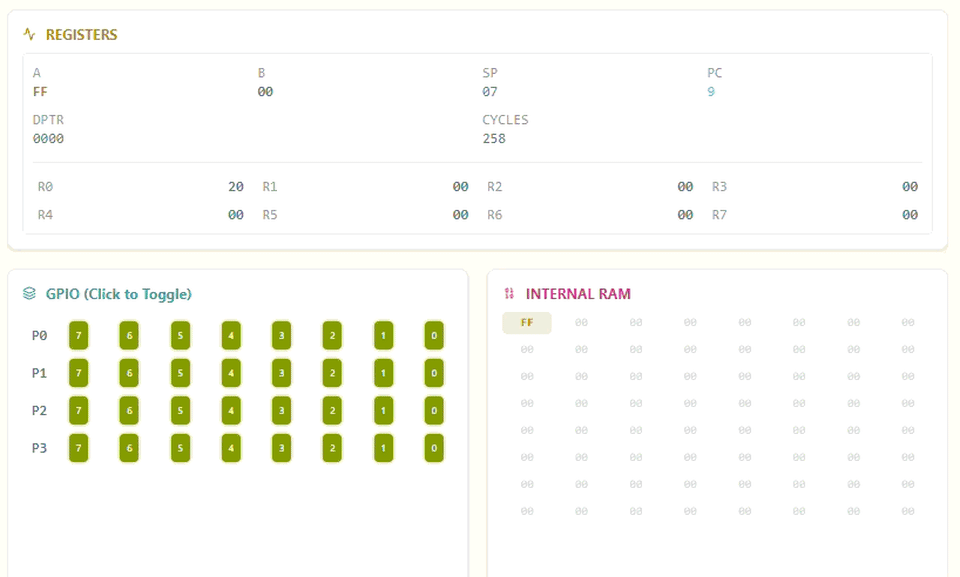

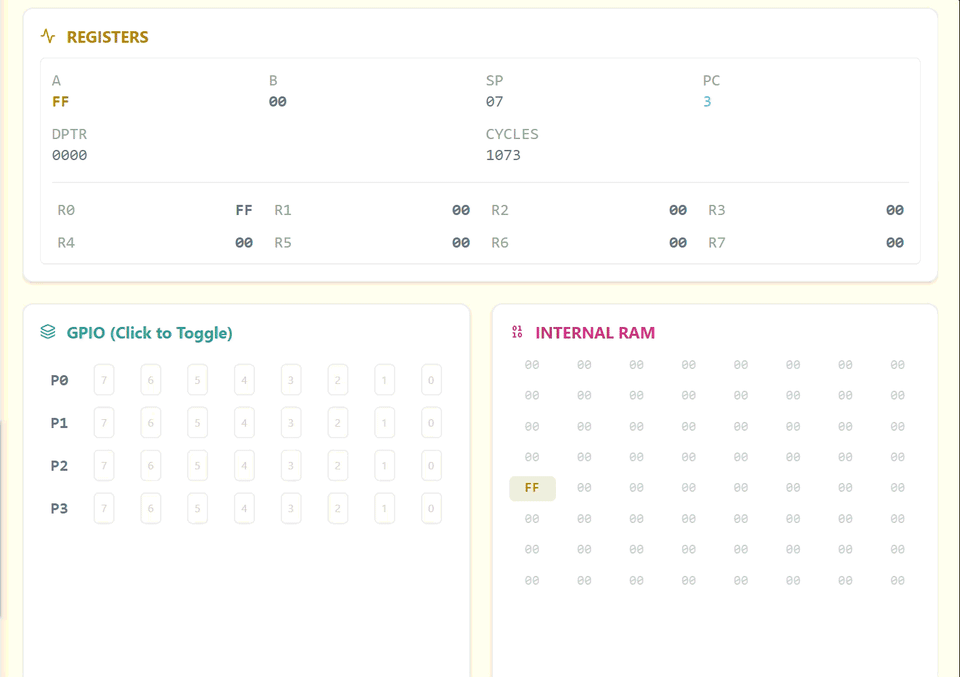

Step-by-step execution with register, flag, and memory visibility
Observe PSW, carry, overflow, and parity behavior in real time
Validate timing-sensitive logic before hardware deployment
Learn instruction-level effects without relying on physical kits

Phase A — Machine Control (Levels 1–4)

Primary validation environment: 8051 Simulator

Level 1: Data Movement & Addressing Modes

Register Operations — Data transfer between registers and accumulator-based operations
Direct Addressing — Move data to and from fixed internal RAM addresses
Indirect Addressing — Use R0/R1 as pointers to access internal RAM
Indexed Addressing — Access lookup tables in code memory using DPTR and MOVC
Block Data Transfer — Copy a block of data from one memory region to another
Stack Operations — PUSH/POP usage, stack growth behavior, subroutine parameter passing
Bit Addressable RAM — Manipulate individual bits in the 20H–2FH address range

Level 2: Arithmetic Operations

8-bit Addition — Perform addition with carry flag handling
16-bit Addition — Multi-byte addition with carry propagation
8-bit Subtraction — Subtraction with borrow and carry analysis
16-bit Subtraction — Multi-byte subtraction with borrow handling
BCD Addition — Binary Coded Decimal addition using DA instruction
BCD Subtraction — Decimal-adjusted subtraction for BCD values
Multiplication (Repetitive Addition) — 8-bit multiply without MUL instruction
Division (Repetitive Subtraction) — 8-bit divide without DIV instruction
16-bit Multiplication — Multi-byte multiplication algorithm
16-bit Division — Multi-byte division with quotient and remainder
Booth’s Multiplication — Signed multiplication using Booth’s algorithm
Binary to BCD Conversion — Convert binary number to packed or unpacked BCD
BCD to Binary Conversion — Convert BCD representation to binary
Binary to ASCII — Convert binary value to ASCII hexadecimal characters
ASCII to Binary — Convert ASCII hexadecimal characters to binary value

Level 3: Logical Operations & Bit Manipulation

Bit Set / Clear / Toggle — Individual bit control using SETB, CLR, CPL
Bit Testing — Conditional branching using JB, JNB, and JBC
Nibble Swap — Swap upper and lower nibbles using SWAP instruction
Bit Rotation — Rotate accumulator left or right with and without carry
Parity Check — Use PSW parity flag for data integrity checks
Bit Counting — Count number of logic-1 bits in a byte
AND / OR / XOR — Logical masking, clearing, and bit testing
Bit Reversal — Reverse the bit order within a byte

Level 4: Flags & Program Status Word (PSW)

Carry Flag Operations — Explicit manipulation and dependency analysis
Auxiliary Carry Flag — Understand AC behavior in BCD arithmetic
Overflow Flag — Detect signed arithmetic overflow conditions
Parity Flag — Use parity bit for error detection and validation
Register Bank Selection — Switch register banks using RS0 and RS1
User Flag (F0) — Employ PSW user-defined flag for logic control
Multi-precision Arithmetic — Implement 32-bit and 64-bit arithmetic using flags

Phase B — Deterministic Logic (Levels 5–6)

Level 5: Comparison & Conditional Operations

Byte Comparison — Compare two values using SUBB and flag analysis
String Comparison — Compare byte sequences stored in memory
Find Maximum — Identify the largest value in an array
Find Minimum — Identify the smallest value in an array
Range Checking — Verify whether a value lies within defined bounds
CJNE Instruction Mastery — Conditional branching using CJNE semantics
Conditional Subroutines — Execute different routines based on comparison results

Level 6: Array & Table Operations

Array Initialization — Fill arrays with constants or computed values
Linear Search — Search an unsorted array sequentially
Binary Search — Search a sorted array using divide-and-conquer
Bubble Sort — Sort array elements using adjacent comparisons
Selection Sort — Sort array by selecting minimum or maximum iteratively
Array Reversal — Reverse array elements in memory
Lookup Tables — Access precomputed tables using MOVC
Code Table Access — Use tables for 7-segment patterns or character sets
Checksum Calculation — Compute and verify data integrity checksums

Phase C — Time Control (Levels 7–8)

Primary validation environment: 8051 Simulator

Level 7: Timer Programming

Timer 0 Mode 0 — 13-bit timer/counter configuration
Timer 0 Mode 1 — 16-bit timer/counter operation
Timer 0 Mode 2 — 8-bit auto-reload timer mode
Timer 0 Mode 3 — Split timer operation of TL0 and TH0
Timer 1 All Modes — Full practice of Timer 1 modes
Precise Delay Generation — Exact delay calculation using machine cycles
Event Counting — Count external pulses using counter mode
Frequency Measurement — Measure input signal frequency
Pulse Width Measurement — Measure high and low pulse durations
Software PWM — Generate PWM signals using timers

Level 8: Interrupt Handling

External Interrupt 0 — Edge and level triggered handling
External Interrupt 1 — Independent interrupt configuration
Timer 0 Interrupt — Overflow-based ISR design
Timer 1 Interrupt — Time-critical ISR handling
Serial Interrupt — RI and TI interrupt servicing
Interrupt Priority — Configure high and low priority interrupts
Nested Interrupts — Allow controlled interrupt nesting
Context Saving — Preserve registers and PSW in ISRs
Interrupt Latency — Measure and minimize response delay
Critical Sections — Atomic operations using interrupt control
Interrupt-driven Tasks — Foreground and background task separation

Phase D — I/O as Protocol (Levels 9–10)

Level 9: Serial Communication

Serial Mode 0 — Synchronous shift-register communication
Serial Mode 1 — 8-bit UART with variable baud rate
Serial Mode 2 — 9-bit UART with fixed baud rate
Serial Mode 3 — 9-bit UART with variable baud rate
Baud Rate Calculation — Timer-based baud generation
9th Bit Operations — Multiprocessor communication support
Interrupt-driven Transmission — Non-blocking serial transmission
Interrupt-driven Reception — Buffered serial reception
Ring Buffer Implementation — Circular buffer for serial data
Framing Error Detection — Detect and handle communication errors
Protocol Implementation — Design packet-based serial protocol

Level 10: LCD Programming

LCD 4-bit Mode Initialization — Reduced pin interface initialization
LCD 8-bit Mode Initialization — Full data bus operation
Busy Flag Checking — Poll LCD status instead of fixed delays
Custom Character Generation — Define characters using CGRAM
Cursor Positioning — Direct cursor movement control
Display Shift Control — Shift display without altering data
Entry Mode Control — Configure cursor increment or decrement
LCD Command Timing — Respect minimum timing constraints

Phase E — Algorithms Under Constraint (Levels 11–12)

Level 11: Advanced Algorithms

Square Root Algorithm — Compute square root using Newton–Raphson or digit-by-digit method
GCD (Greatest Common Divisor) — Implement Euclidean algorithm
LCM (Least Common Multiple) — Derive LCM using GCD computation
Prime Number Check — Determine whether a number is prime
Factorial Calculation — Compute factorial using iterative or recursive logic
Fibonacci Series — Generate Fibonacci sequence iteratively
CRC Calculation — Implement Cyclic Redundancy Check for error detection
Hamming Code — Perform error detection and correction
Linear Feedback Shift Register — Generate pseudo-random sequences
Fixed-Point Arithmetic — Simulate floating-point math using integers

Level 12: Code Optimization Techniques

Loop Unrolling — Reduce loop overhead for speed optimization
Register Optimization — Minimize memory access using registers
Code Size Reduction — Optimize jumps and calls for smaller binaries
Jump Table Implementation — Efficient multi-way branching
Inline vs Subroutine — Decide between speed and modularity
Instruction Cycle Counting — Precise execution time calculation
Memory Banking — Efficient use of register banks

Phase F — System Ownership (Levels 13–14)

Level 13: Low-Level Hardware Control

Port Latch Reading — Understand latch versus pin behavior
Read-Modify-Write — Avoid unintended port bit changes
Quasi-bidirectional Ports — Internal port structure understanding
Pull-up Resistor Effects — Analyze loading and fan-out
Glitch-free Output — Prevent hazards during port updates
Power Mode Control — IDLE and POWER-DOWN modes
Watchdog Timer — Software watchdog implementation

Level 14: System-Level Programming

Reset Vector Handling — Code execution from address 0000H
Interrupt Vector Table — Proper ISR placement and redirection
Memory Map Management — Organize code, data, and stack
Relocatable Code — Position-independent programming techniques
Self-Modifying Code — Controlled runtime code modification
Bootloader Concepts — Jump from bootloader to application
Checksum Verification — Validate program memory integrity

▶️ Start Experimenting

Execute programs instantly: https://8051sim.vercel.app
Use this repository as the reference implementation set
Treat the simulator as the ground truth for instruction behavior

📜 License

Distributed under the MIT License. See LICENSE for more information.
